Brilliant Performance YUNYI Zener Diode SMA (DO-214AC)

Short Description:

Product Package:?SMA(DO-214AC)

Introduction: YUNYI Zener Diode SMA(DO-214AC) is a surface-contact transistor made of silicon material. This diode is a semiconductor device with very high resistance up to the critical reverse breakdown voltage. When the zener tube is reversely broken down, the terminal voltage is almost unchanged within a certain current range, showing stable characteristics. Zener diodes are classified according to their breakdown voltage, and because of this characteristic, Zener diodes are mainly used as voltage regulators or voltage reference components. Zener diodes can be connected in series for use at higher voltages.


Product Detail

Monitoring response time

Measuring range

Product Tags

Advantages of YUNYI's Zener Diode:

1. Yunyi's Zener Diode has strong ability of reverse surge.

2. Competitive cost with high-level quality.

3. High production efficiency with short lead time.

4. Stable and reliable under various natural environments.

5. Small size, helping to optimize the circuit board space

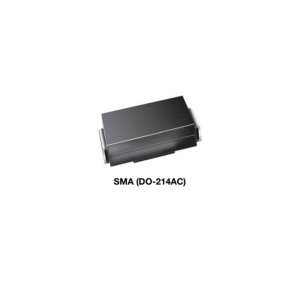

SMA

Steps of Chip Production:

1. Mechanically Printing（Super-precise automatic wafer printing）

2. Automatic First-etching （Automatic Etching Equipment，CPK>1.67）

3. Automatic Polarity Test（Precise Polarity Test）

4. Automatic Assembly （Self-developed Automatic Precise Assembly）

5. Soldering (Protection with Mixture of Nitrogen & Hydrogen Vacuum Soldering )

6. Automatic Second-etching (Automatic Second-etching with Ultra-pure Water)

7. Automatic Gluing (Uniform Gluing & Precise Calculation are Realized by Automatic Precise Gluing Equipment)

8. Automatic Thermal Test (Automatic Selection by Thermal Tester)

9. Automatic Test(Multifunctional Tester)

貼片檢測
油墨印刷晶圓

Parameters:

Catalog P/N Package? Pd
Mw		 VZ
V		 IZT
mA		 ?IR
μA		 ?VR
V		 ZZT
Ohms		 ZZK
Ohms		 IZK
mA
1SMA4741 SMA 1000 11 23 5 8.4 8 700 0.25
1SMA4742 SMA 1000 12 21 5 9.1 9 700 0.25
1SMA4743 SMA 1000 13 19 5 9.9 10 700 0.25
1SMA4744 SMA 1000 15 17 5 11.4 14 700 0.25
1SMA4745 SMA 1000 16 15.5 5 12.2 16 700 0.25
1SMA4746 SMA 1000 18 14 5 13.7 20 750 0.25
1SMA4747 SMA 1000 20 12.5 5 15.2 22 750 0.25
1SMA4748 SMA 1000 22 11.5 5 16.7 23 750 0.25
1SMA4749 SMA 1000 24 10.5 5 18.2 25 750 0.25
1SMA4750 SMA 1000 27 9.5 5 20.6 35 750 0.25
1SMA4751 SMA 1000 30 8.5 5 22.8 40 1000 0.25
1SMA4752 SMA 1000 33 7.5 5 25.1 45 1000 0.25
1SMA4753 SMA 1000 36 7 5 27.4 50 1000 0.25
1SMA4754 SMA 1000 39 6.5 5 29.7 60 1000 0.25
1SMA4755 SMA 1000 43 6 5 32.7 70 1500 0.25
1SMA4756 SMA 1000 47 5.5 5 35.8 80 1500 0.25
1SMA4757 SMA 1000 51 5 5 38.8 95 1500 0.25
1SMA4758 SMA 1000 56 4.5 5 42.6 110 2000 0.25
1SMA4759 SMA 1000 62 4 5 47.1 125 2000 0.25
1SMA4760 SMA 1000 68 3.7 5 51.7 150 2000 0.25
1SMA4761 SMA 1000 75 3.3 5 56 175 2000 0.25
1SMA4762 SMA 1000 82 3 5 62.2 200 3000 0.25
1SMA4763 SMA 1000 91 2.8 5 69.2 250 3000 0.25
1SMA4764 SMA 1000 100 2.5 5 76 350 3000 0.25
1SMA4741-GT3 SMA 1000 11 23 5 8.4 8 700 0.25
1SMA4742-GT3 SMA 1000 12 21 5 9.1 9 700 0.25
1SMA4743-GT3 SMA 1000 13 19 5 9.9 10 700 0.25
1SMA4744-GT3 SMA 1000 15 17 5 11.4 14 700 0.25
1SMA4745-GT3 SMA 1000 16 15.5 5 12.2 16 700 0.25
1SMA4746-GT3 SMA 1000 18 14 5 13.7 20 750 0.25
1SMA4747-GT3 SMA 1000 20 12.5 5 15.2 22 750 0.25
1SMA4748-GT3 SMA 1000 22 11.5 5 16.7 23 750 0.25
1SMA4749-GT3 SMA 1000 24 10.5 5 18.2 25 750 0.25
1SMA4750-GT3 SMA 1000 27 9.5 5 20.6 35 750 0.25
1SMA4751-GT3 SMA 1000 30 8.5 5 22.8 40 1000 0.25
1SMA4752-GT3 SMA 1000 33 7.5 5 25.1 45 1000 0.25
1SMA4753-GT3 SMA 1000 36 7 5 27.4 50 1000 0.25
1SMA4754-GT3 SMA 1000 39 6.5 5 29.7 60 1000 0.25
1SMA4755-GT3 SMA 1000 43 6 5 32.7 70 1500 0.25
1SMA4756-GT3 SMA 1000 47 5.5 5 35.8 80 1500 0.25
1SMA4757-GT3 SMA 1000 51 5 5 38.8 95 1500 0.25
1SMA4758-GT3 SMA 1000 56 4.5 5 42.6 110 2000 0.25
1SMA4759-GT3 SMA 1000 62 4 5 47.1 125 2000 0.25
1SMA4760-GT3 SMA 1000 68 3.7 5 51.7 150 2000 0.25
1SMA4761-GT3 SMA 1000 75 3.3 5 56 175 2000 0.25
1SMA4762-GT3 SMA 1000 82 3 5 62.2 200 3000 0.25
1SMA4763-GT3 SMA 1000 91 2.8 5 69.2 250 3000 0.25
1SMA4764-GT3 SMA 1000 100 2.5 5 76 350 3000 0.25
