High Thermal Conductivity DPAK (TO-252AA) SiC Diode

Short Description:

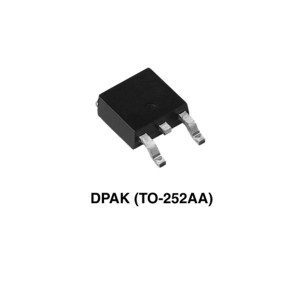

Packaging Structure: DPAK (TO-252AA)

Introduction: YUNYI DPAK (TO-252AA) SiC Diode, which is made from silicon carbide materials, has high the thermal conductivity and strong ability to transfer heat, more conducive to improving the power density of the power device, so it is more suitable for working in a high temperature environment. The high breakdown field strength of SiC diodes increases the withstand voltage and reduces the size, and the high electronic breakdown field strength increases the breakdown voltage of semiconductor power devices. At the same time, due to the increase of the electron breakdown field strength, in the case of increasing the impurity penetration density, the broadband of the drift region of the SiC diode power device can be reduced, so that the size of the power device can be reduced.

Send email to us

Product Detail

Monitoring response time

Measuring range

Product Tags

Merits of YUNYI's DPAK (TO-252AA) SiC Diode:

1. Competitive cost with high-level quality

2. High production efficiency with short lead time

3. Small size, helping to optimize the circuit board space

4. Stable and reliable under various natural environments

5. Self-developed low-loss chip

Procedures of Chip Production:

1. Mechanically Printing（Super-precise automatic wafer printing）

2. Automatic First-etching （Automatic Etching Equipment，CPK>1.67）

3. Automatic Polarity Test（Precise Polarity Test）

4. Automatic Assembly （Self-developed Automatic Precise Assembly）

5. Soldering (Protection with Mixture of Nitrogen & Hydrogen Vacuum Soldering )

6. Automatic Second-etching (Automatic Second-etching with Ultra-pure Water)

7. Automatic Gluing (Uniform Gluing & Precise Calculation are Realized by Automatic Precise Gluing Equipment)

8. Automatic Thermal Test (Automatic Selection by Thermal Tester)

9. Automatic Test(Multifunctional Tester)

Parameters of products:

Part Number	Package	VRWM V	IO A	IFZM? A	IR μa	V_F V
ZICRD5650	DPAK	650	5	60	60	2
ZICRD6650	DPAK	650	6	60	50	2
Z3D06065E	DPAK	650	6	70	3(0.03 typical)	1.7(1.5 typical)
ZICRD10650CT	DPAK	650	10	60	60	1.7
ZICRD10650	DPAK	650	10	110	100	1.7
ZICRD101200	DPAK	1200	10	110	100	1.8
ZICRD12600	DPAK	600	12	50	150	1.7
ZICRD12650	DPAK	650	12	50	150	1.7
Z3D03065E	DPAK	650	3	46	2(0.03 typical)	1.7(1.4 typical)
Z3D10065E	DPAK	650	10	115	40(0.7 typical)	1.7(1.45 typical)
Z4D04120E	DPAK	1200	4	46	200(20 typical)	1.8(1.5 typical)
Z4D05120E	DPAK	1200	5	46	200(20 typical)	1.8(1.65 typical)
Z4D02120E	DPAK	1200	2	44	50(10 typical)	1.8(1.5 typical)
Z4D10120E	DPAK	1200	10	105	200(30 typical)	1.8(1.5 typical)
Z4D08120E	DPAK	1200	8	64	200(35 typical)	1.8(1.6 typical)
Z3D10065E2	DPAK	650	10	70(per leg)	8(0.002 typical)(per leg)	1.7(1.5 typical)(per leg)
