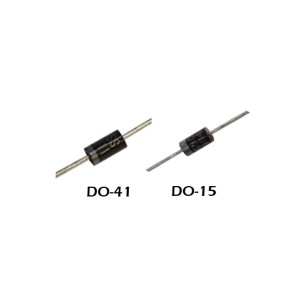

Fast Recovery Rectifier DO-41/DO-15 with Brilliant Performance
Merits of YUNYI's Fast Recovery Diode DO-41/DO-15:
1. Extremely low failure rate in different weathers and areas
2. Competitive cost with high-level quality.
3. High production efficiency with short lead time.
4. Small size, helping to optimize the circuit board space
5. Approved by the standards of IATF16949,ISO14001, ISO 9001:2005, OHSAS18001, VDA6.3, etc.
6. High surge capability
7. PN junction is secured by solid wrap of PI glue.
Process of Chip Production:
1. Mechanically Printing（Super-precise automatic wafer printing）
2. Automatic First-etching （Automatic Etching Equipment，CPK>1.67）
3. Automatic Polarity Test（Precise Polarity Test）
4. Automatic Assembly （Self-developed Automatic Precise Assembly）
5. Soldering (Protection with Mixture of Nitrogen & Hydrogen Vacuum Soldering )
6. Automatic Second-etching (Automatic Second-etching with Ultra-pure Water)
7. Automatic Gluing (Uniform Gluing & Precise Calculation are Realized by Automatic Precise Gluing Equipment)
8. Automatic Thermal Test (Automatic Selection by Thermal Tester)
9. Automatic Test(Multifunctional Tester)
線1-300x160.jpg)
Parameters:
| Part Name | Package? | VRWM V |
?IO A |
IFSM A |
IR pA |
VF V |
Trr ns |
| 1F1 | R-1 | 50 | — | 25 | 5 | 1.3 | 150 |
| 1F2 | R-1 | 100 | — | 25 | 5 | 1.3 | 150 |
| 1F3 | R-1 | 200 | — | 25 | 5 | 1.3 | 150 |
| 1F4 | R-1 | 400 | — | 25 | 5 | 1.3 | 150 |
| 1F5 | R-1 | 600 | — | 25 | 5 | 1.3 | 250 |
| 1F6 | R-1 | 800 | — | 25 | 5 | 1.3 | 500 |
| 1F7 | R-1 | 1000 | — | 25 | 5 | 1.3 | 500 |
| RL101F | A-405 | 50 | — | 30 | 5 | 1.3 | 150 |
| RL102F | A-405 | 100 | — | 30 | 5 | 1.3 | 150 |
| RL103F | A-405 | 200 | — | 30 | 5 | 1.3 | 150 |
| RL104F | A-405 | 400 | — | 30 | 5 | 1.3 | 150 |
| RL105F | A-405 | 600 | — | 30 | 5 | 1.3 | 250 |
| RL106F | A-405 | 800 | — | 30 | 5 | 1.3 | 500 |
| RL107F | A-405 | 1000 | — | 30 | 5 | 1.3 | 500 |
| FR151G | DO-15 | 50 | 1.5 | 50 | 5 | 1.3 | 150 |
| FR152G | DO-15 | 100 | 1.5 | 50 | 5 | 1.3 | 150 |
| FR153G | DO-15 | 200 | 1.5 | 50 | 5 | 1.3 | 150 |
| FR154G | DO-15 | 400 | 1.5 | 50 | 5 | 1.3 | 150 |
| FR155G | DO-15 | 600 | 1.5 | 50 | 5 | 1.3 | 250 |
| FR156G | DO-15 | 800 | 1.5 | 50 | 5 | 1.3 | 500 |
| FR157G | DO-15 | 1000 | 1.5 | 50 | 5 | 1.3 | 500 |
| FR201G | DO-15 | 50 | 2 | 70 | 5 | 1.3 | 150 |
| FR202G | DO-15 | 100 | 2 | 70 | 5 | 1.3 | 150 |
| FR203G | DO-15 | 200 | 2 | 70 | 5 | 1.3 | 150 |
| FR204G | DO-15 | 400 | 2 | 70 | 5 | 1.3 | 150 |
| FR205G | DO-15 | 600 | 2 | 70 | 5 | 1.3 | 250 |
| FR206G | DO-15 | 800 | 2 | 70 | 5 | 1.3 | 500 |
| FR207G | DO-15 | 1000 | 2 | 70 | 5 | 1.3 | 500 |
| FR301G | DO-201AD | 50 | 3 | 125 | 5 | 1.3 | 150 |
| FR302G | DO-201AD | 100 | 3 | 125 | 5 | 1.3 | 150 |
| FR303G | DO-201AD | 200 | 3 | 125 | 5 | 1.3 | 150 |
| FR304G | DO-201AD | 400 | 3 | 125 | 5 | 1.3 | 150 |
| FR305G | DO-201AD | 600 | 3 | 125 | 5 | 1.3 | 250 |
| FR306G | DO-201AD | 800 | 3 | 125 | 5 | 1.3 | 500 |
| FR307G | DO-201AD | 1000 | 3 | 125 | 5 | 1.3 | 500 |
| R2000F | DO-41 | 2000 | 0.2 | 30 | 5 | 4 | 500 |
| FR101G | DO-41 | 50 | — | 30 | 5 | 1.3 | 150 |
| FR102G | DO-41 | 100 | — | 30 | 5 | 1.3 | 150 |
| FR103G | DO-41 | 200 | — | 30 | 5 | 1.3 | 150 |
| FR104G | DO-41 | 400 | — | 30 | 5 | 1.3 | 150 |
| FR105G | DO-41 | 600 | — | 30 | 5 | 1.3 | 250 |
| FR106G | DO-41 | 800 | — | 30 | 5 | 1.3 | 500 |
| FR107G | DO-41 | 1000 | — | 30 | 5 | 1.3 | 500 |
